Fun with Epitrochoids

An epitrochoid is a curve traced by a point attached to a circle of radius r rolling around the outside of a fixed circle of radius R, where the point is a distance d from the center of the exterior circle [Ref]. Lately I found the Epitrochoid's parametric equations on wikipedia:

So,I decided to plot them with pylab. This is the script I made
from numpy import sin,cos,linspace,pi
import pylab

# curve parameters
R = 14
r = 1
d = 18

t = linspace(0,2*pi,300)

# Epitrochoid parametric equations
x = (R-r)*cos(t)-d*cos( (R+r)*t / r )
y = (R-r)*sin(t)-d*sin( (R+r)*t / r )

And this is the result
isn't it fashinating? :)

Varying the parameters R, r and d we can plot an infinity of different curves. The following plot is made with R = 6, r = 1, d = 6

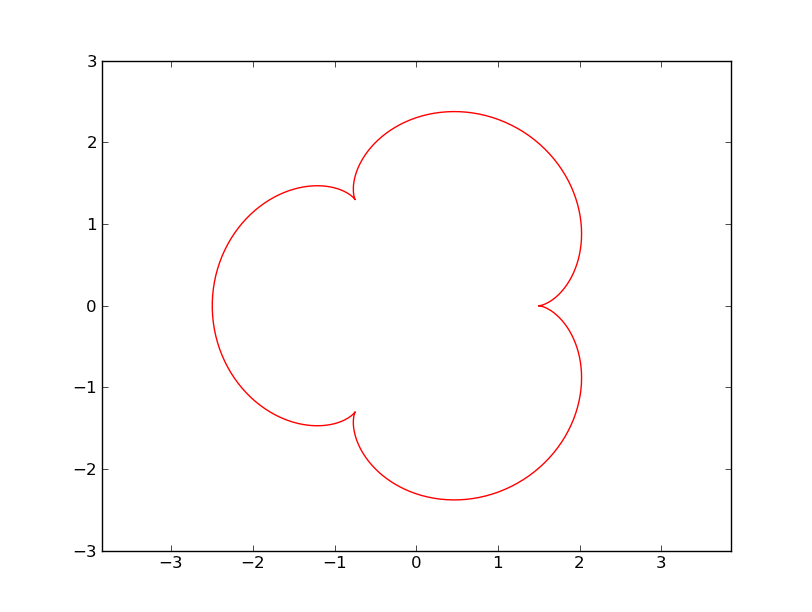

and the this is made with R = 3, r = 1, d = .5
